Burlington basin mixer with high central indice
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Anglesey basin mixer with pop-up waste Chrome
Tap Head Options (Chrome Finish Shown)
Claremont basin mixer with pop-up waste Claremont AngleseyTapHead.jpg Anglesey Birkenhead basin mixer with pop-up waste Birkenhead
Quarter turn options
Anglesey basin mixer with pop-up waste quarter turn full_done.jpg tradional screw-down
Tap Base options

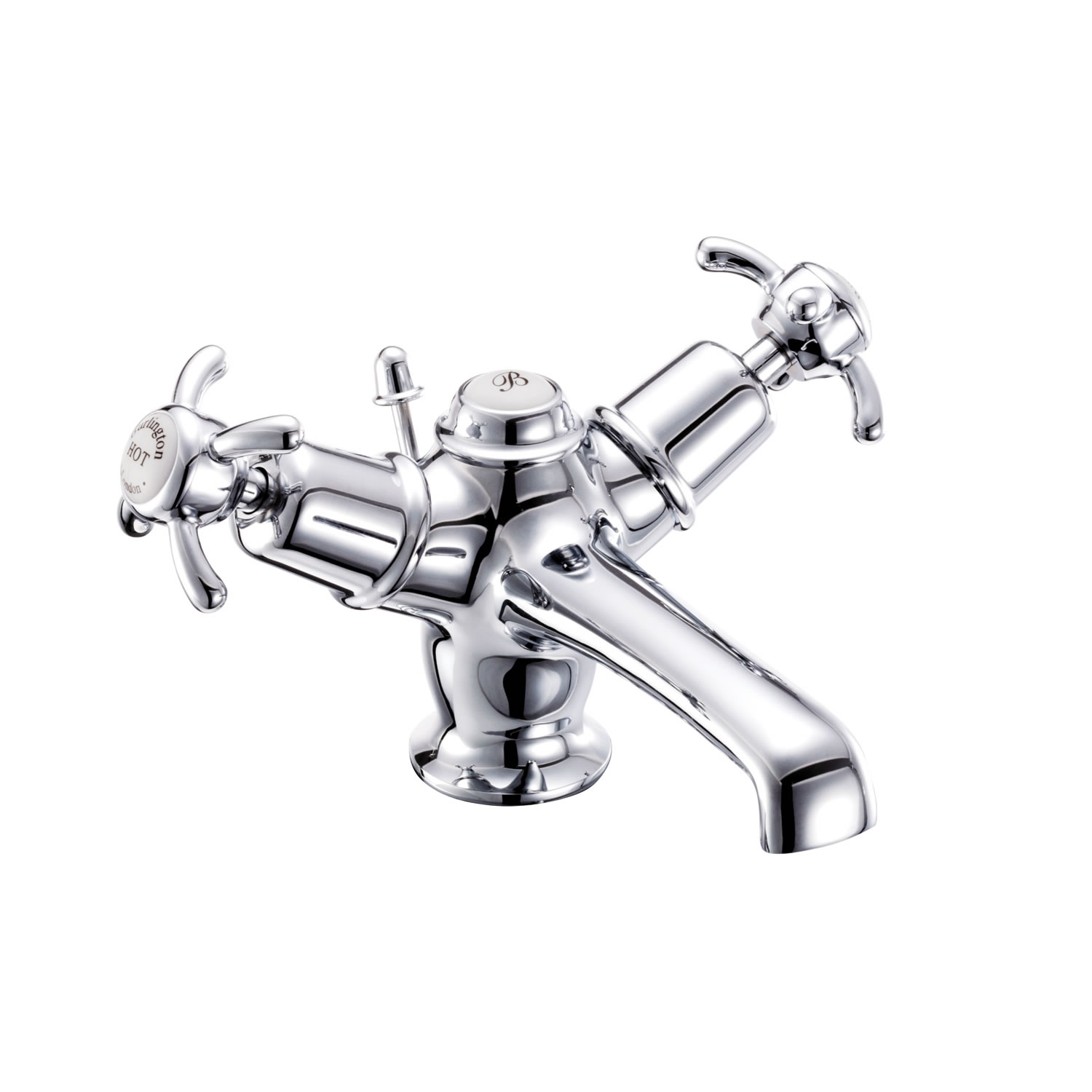

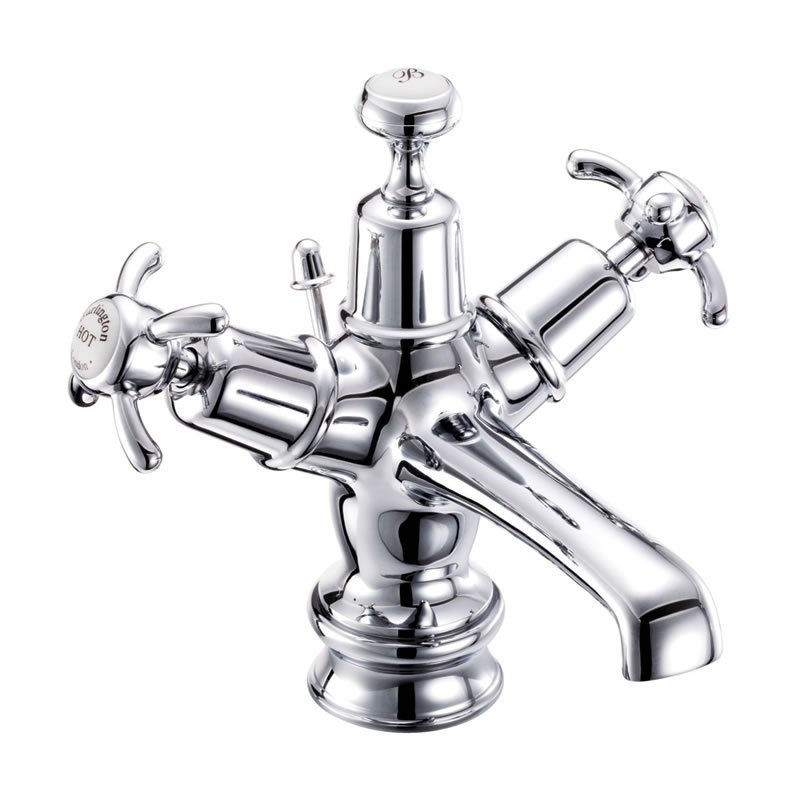

Anglesey basin mixer with pop-up waste Standard base Anglesey Regent basin mixer with pop-up waste Regent base
Waste options
Anglesey basin mixer with click-clack waste with click-clack waste popup.jpg with pop-up waste Anglesey basin mixer with plug and chain waste with plug & chain
Indicies & lever finish

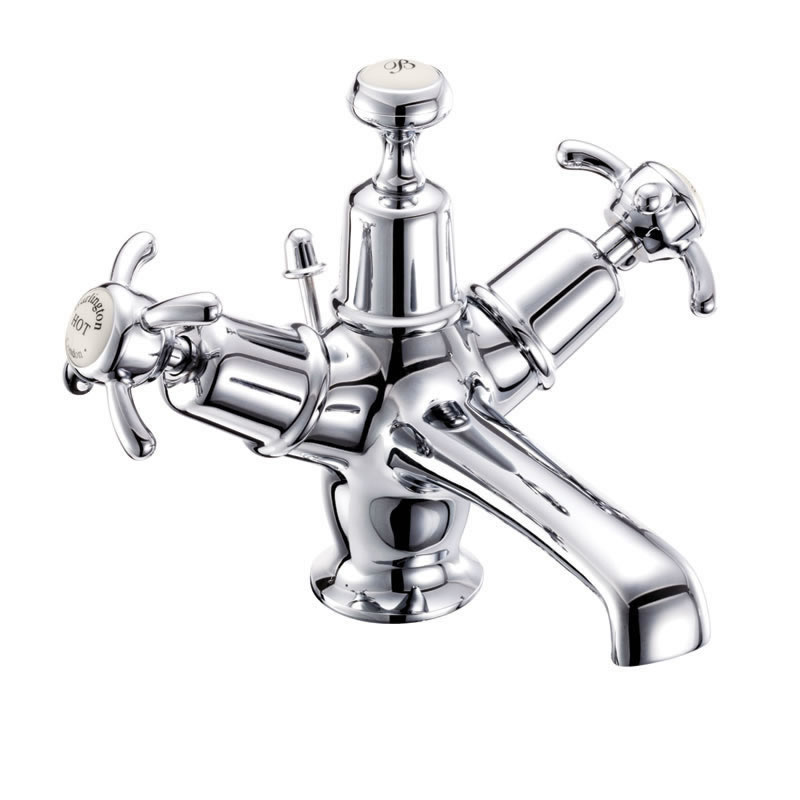

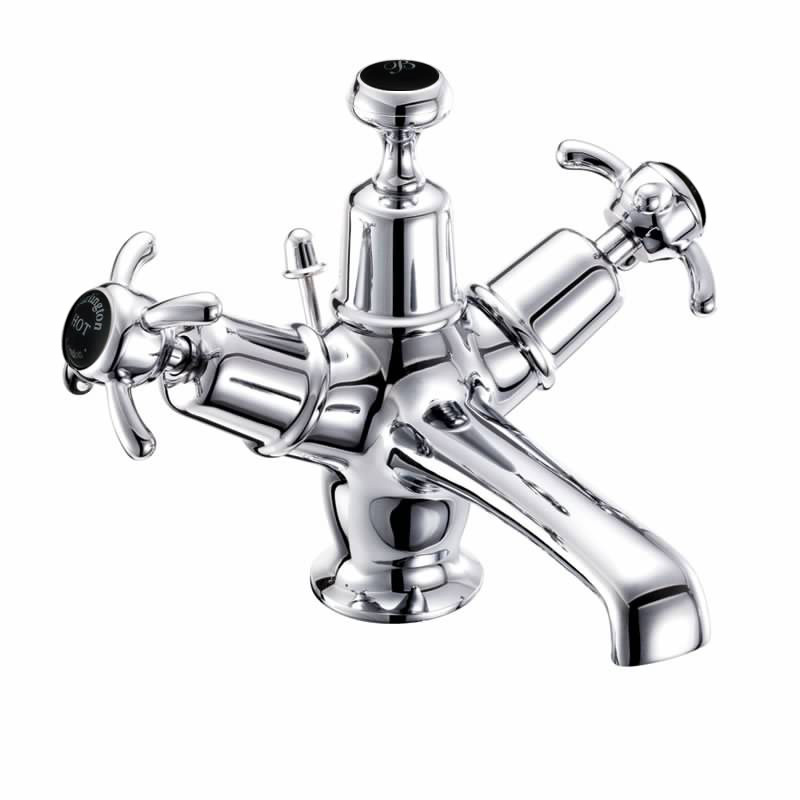

Anglesey basin mixer with pop-up waste White Anglesey Medici basin mixer with pop-up waste Medici Anglesey basin mixer with pop-up waste Black
Alternate Text

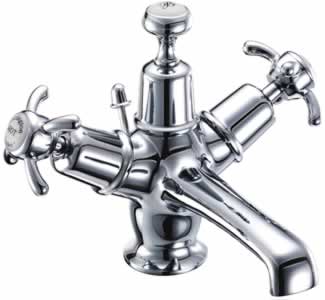

As Shown
T12 Basin mixer
T2 Anglesey tap handles
AN4  -  Combined product code
Colour
T12 - tap - Polished Chrome
T2 - tap handle - Polished Chrome
Material
T12 - tap - Brass
T2 - tap handle - Brass
Size
T12 - 166 x 159 x 152mm
T2 - 64 x 64 x 23.7mm
Nett Weight
T12 - tap - 1.63kg
T2 - tap handle - 0.16kg
Gross Weight Including Packaging
T12 - tap - 1.98kg
T2 - tap handle - 0.18kg
Packed Dimension
T12 - 335 x 285 x 180 = 0.0172 m3
T2 - 52 x 52 x 65 = 0.0002 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Gold and Nickel finish is only available with the quarter turn option
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 12  13.2  15.2  19.4  21.4  n/a  n/a
Spout (aerator) 4.5  7.8  8.7  9.8  12  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1726 back bottom washer for SP28
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP133 connector for horizontal control rod
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP150 DECORATIVE HEAD &POP-UP CONTROL ROD-T12
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP31 T12 1, 2 full turn cartridge
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
SP151 waste for T12
Downloads
  • Instructions - PDF - T12 (English)
  • Instructions - PDF - T12 (French)
  • 3D RFA BIMM Objects - File - RFA  -  AN4 (T12_T2.rfa)
  • 3D DWG - File - DWG - T12 (T12.dwg)
  • 3D DXF - File - DXF - T12 (T12.dxf)
  • 3D IGS - File - IGS - T12 (T12.igs)
  • 3D DWG - File - DWG - T2 (T2.dwg)
  • 3D DXF - File - DXF - T2 (T2.dxf)
  • 3D IGS - File - IGS - T2 (T2.igs)
  • Lifestyle image 1 - tiff
    jpg
  • Product image 1 - jpg
  • Product image 2 - jpg
  • Product image 3 - jpg
  • Product image 4 - tiff jpg

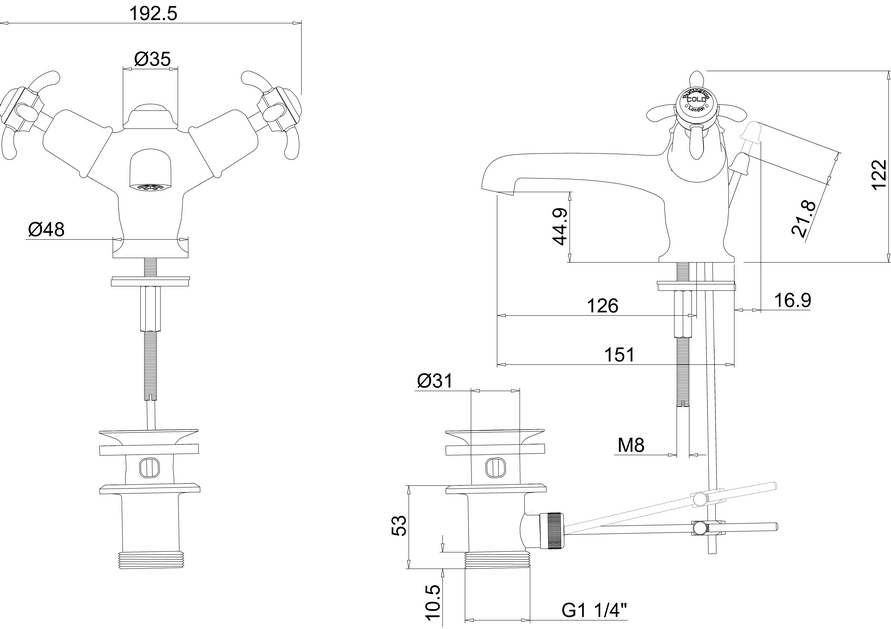

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
