Welcome to the Bathroom Brands Technical Whitebook


Exposed bath overflow, plug & chain
asaq2.Model.Web_product_new?.web_name
As Shown

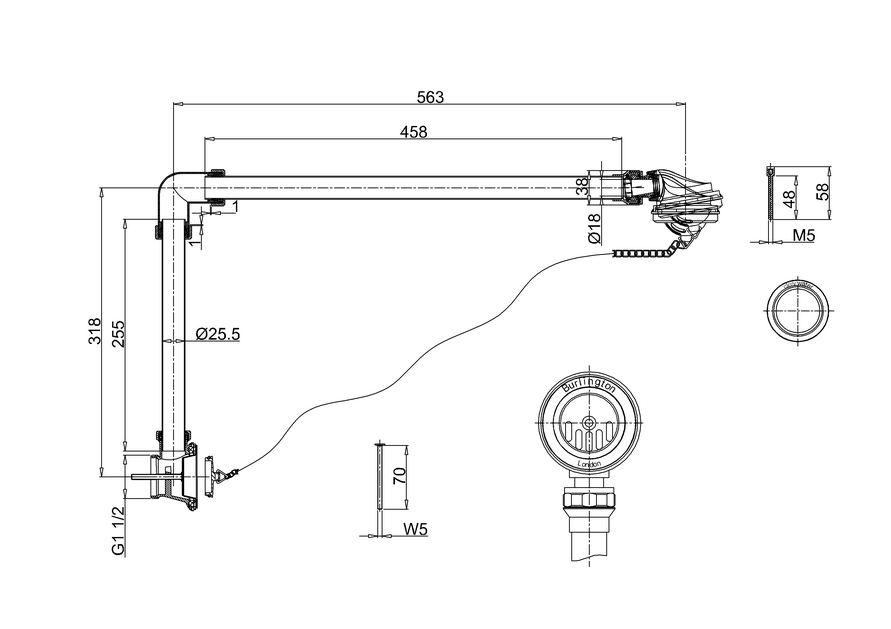

W4 Vertical bath overflow, plug & chain
W4  -  Combined product code
Gross Weight Including Packaging
W4 - waste - 2.07kg
Guarantee
2 year guarantee*
*Full terms & conditions here
Standards Information
EN817 & EN200
SP316 bath chain for W4, W5, CW4, CW5
SP108 ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP1002 connecting curved pipe of product W4, CW6, ARCW4 CHR (including the nuts & washers)
SP361 cover for W4, W5, CW4, CW5
SP377 GASKET & RUBBER WASHER for all finishes products of W4 waste housing
SP1897 horizontal pipe for W4, CW6
SP1168 nut for W4, CW6, ARCW4 CHR
SP186 o-ring on the plug of product W4, W3, ARCW4 NKL, ARCW3 NKL
SP988 overflow base of W3, W4, ARCW3 CHR, ARCW4 CHR
SP1683 overflow housing for W4, CW6, CW11
SP166 overflow screw for product W3, W4, ARCW3 CHR, ARCW4 CHR
SP1472 overflow washer for all finishes products of W3, W4
SP408 screw for chain conneted to overflow cover (W4, W3, ARCW4 CHR, ARCW3 CHR)
SP167 screw for waste of W4, W5
SP1171 vertical tube for W4, CW6, ARCW4 CHR
SP635 waste base for W4
