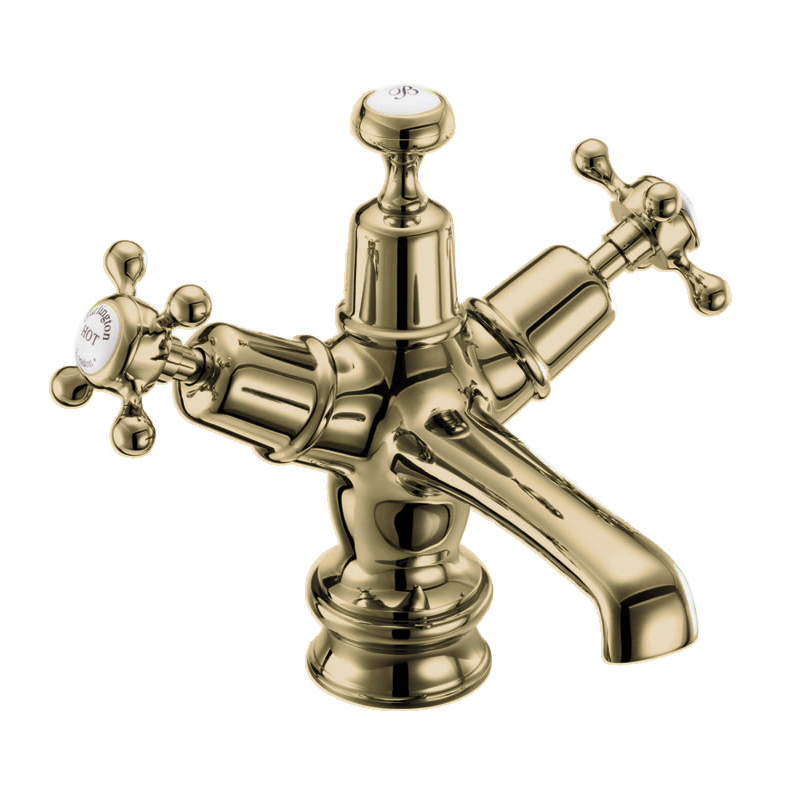

Burlington basin mixer with high central indice
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Waste options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
tradional screw-down
|
|
Standard base
|
Regent base
|
with click-clack waste
|
|
White
|
As Shown
| T12_QTGOLD − |
| T1GOLD − |
| W11GOLD − |
| CL6-QT GOLD - Combined product code |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12 | 13.2 | 15.2 | 19.4 | 21.4 | n/a | n/a |
| Spout (aerator) | 4.5 | 7.8 | 8.7 | 9.8 | 12 | n/a | n/a |
| SP1660 | 1, 2 quarter turn COLD cartridge for T12-QT GOLD |
| SP1661 | 1, 2 quarter turn HOT cartridge for T12-QT GOLD |
| SP1772 | decorative cap in gold and B logo ceramic for T12-QT GOLD, T14-QT GOLD |
| SP931GOLD | decorative cap in Gold finish of Burlington tap handles cold for T1GOLD |
| SP930GOLD | decorative cap in Gold finish of Burlington tap handles hot for T1GOLD |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1554 | gold finish Bell shape handle part for T27-QT GOLD, T12-QT GOLD, T14-QT GOLD, T5-QT GOLD, T6-QT GOLD, T8-QT GOLD and spout for T14_QTGOLD |
| SP1706 | gold finish Lower vertical and horizontal control rods of product T12-QT GOLD |
| SP1715 | gold finish Plug of pop up waste for product T12-QT GOLD, T14-QT GOLD |
| SP2040 | waste Cover (with washer) in Gold Finish for W11GOLD |
| SP1725GOLD | waste in gold for T12-QT GOLD, T14-QT GOLD |
Downloads
- Instructions - PDF - T12_QTGOLD (English)
- Instructions - PDF - W11GOLD (English)
- Instructions - PDF - (French)
- Instructions - PDF - (French)
-
2D CAD-File - DWG -
CL6-QT GOLD
(CL6_LD.dwg)
-
2D Drawing - PDF -
CL6-QT GOLD
(CL6_LD.pdf)
2D Drawing - PDF - CL6-QT GOLD
