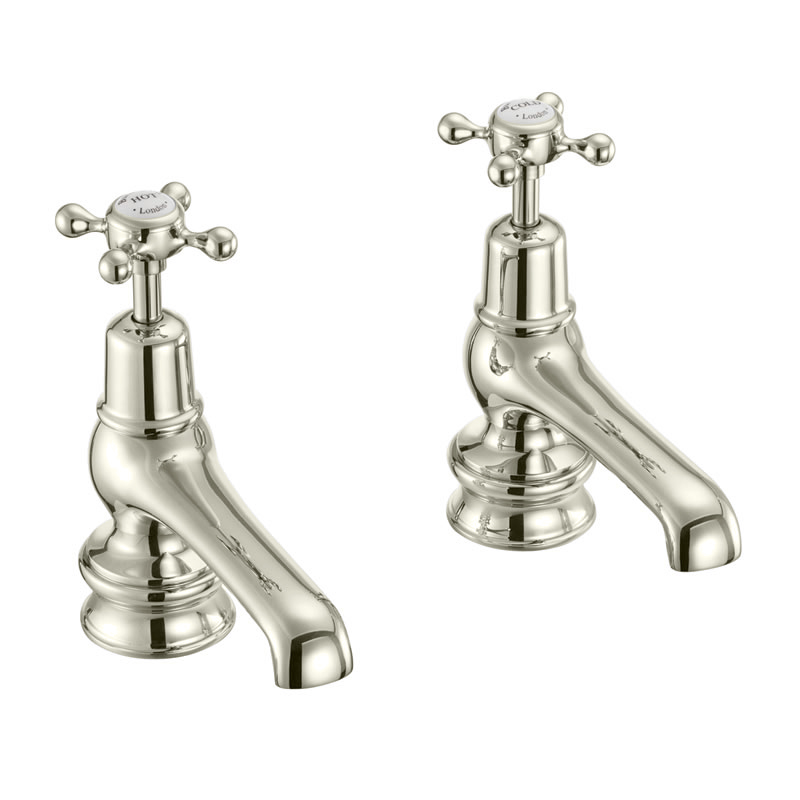

Burlington 5" basin taps
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
|
Standard base
|
Regent base
|
|
White
|
As Shown
| T1 NKL − |
| T6-QT NKL − |
| CL2-QT NKL - Combined product code |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with white indicies |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12.7 | 13.8 | 17.6 | 22.2 | 22.6 | n/a | n/a |
| Spout (aerator) | 4.8 | 7.9 | 9.1 | 10.5 | 11.6 | n/a | n/a |
| SP1654 | 3, 4 quarter turn COLD cartridge for T5-QT NKL, T6-QT NKL |
| SP1655 | 3, 4 quarter turn HOT cartridge for T5-QT NKL, T6-QT NKL |
| SP91 | G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT |
| SP1555 | nickel finish Bell shape handle part for products T27-QT NKL, T12-QT NKL, T14-QT NKL, T5-QT NKL, T6-QT NKL, T8-QT NKL |
Downloads
-
2D CAD-File - DWG -
CL2-QT NKL
(CL2_LD.dwg)
-
2D Drawing - PDF -
CL2-QT NKL
(CL2_LD.pdf)
2D Drawing - PDF - CL2-QT NKL
