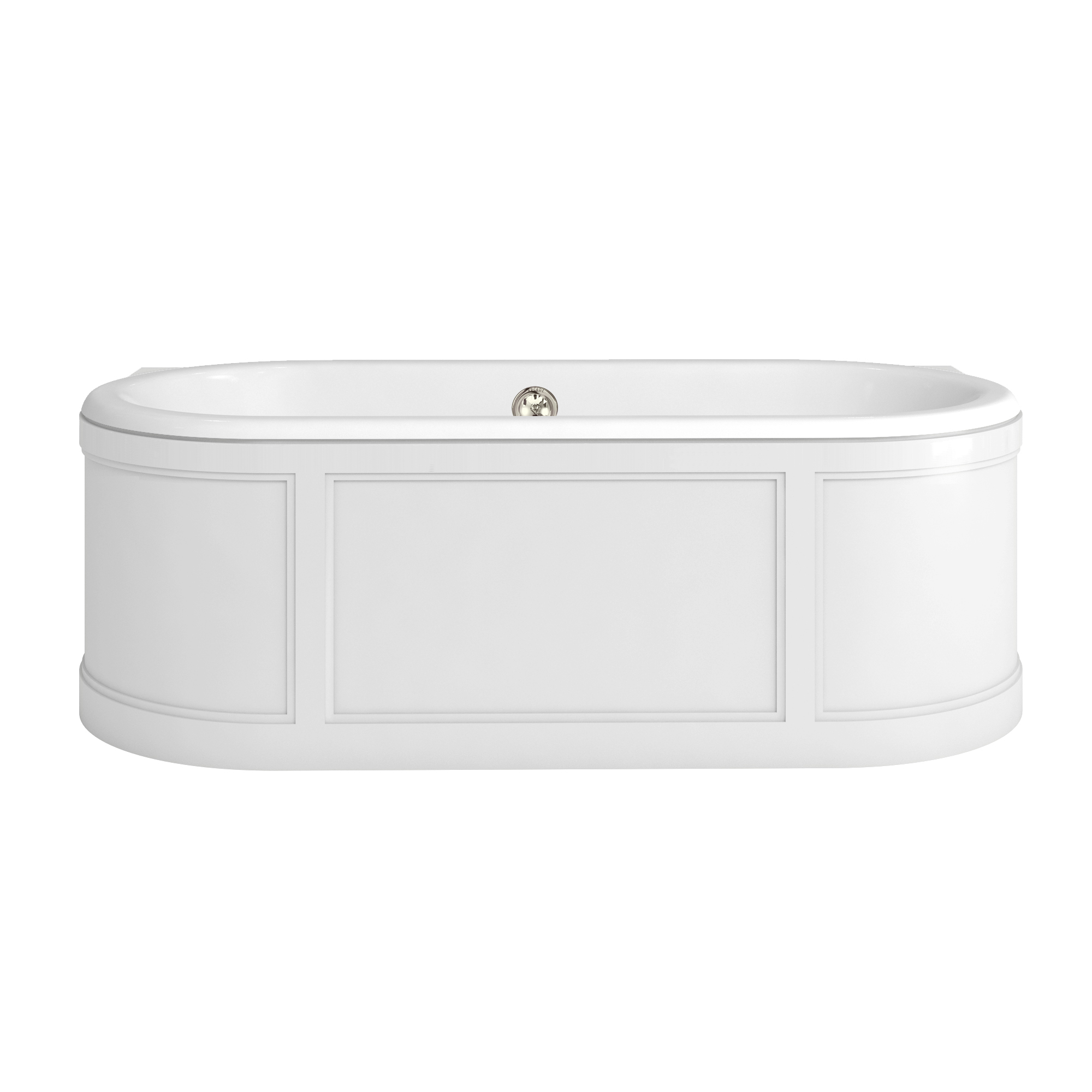

London bath with curved surround including overflow & waste
asaq2.Model.Web_product_new?.web_name
Product Options
Colour options: furniture
London Bath with Curved Surround incl overflow & waste - Dark Olive Dark Olive London Bath with Curved Surround incl overflow & waste - Sand Sand London Bath with Curved Surround incl overflow & waste - Matt White Matt White London Bath with Curved Surround incl overflow & waste - Classic Grey Classic Grey
Alternate Text
As Shown
E22W −
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 14516:2015+A1:2018
Additional Information
Supplied with pre-fitted overflow & plug and chain waste
No tap holes possible on bath rim
The bath & surround are supplied as a complete unit
Compatible Products
CL24 -    Claremont bath filler - wall mounted
W7 -    Stand pipes including horizontal support bar
T2WB -    Tay Thermostatic Bath Shower Mixer Wall Mounted
Downloads
  • Instructions - PDF - E22W (English)
  • Instructions - PDF - (French)
  • 3D DWG - File - DWG  -  E22W (RLG1807-PV_1.dwg)
  • 3D DXF - File - DXF  -  E22W (RLG1807-PV_1.dxf)
  • 3D IGS - File - IGS  -  E22W (RLG1807-PV_1.igs)
  • 3D RFA BIMM Objects - File - RFA  -  E22W (RLG1807-PV_1.rfa)
  • Product image 1 - jpg
  • Product image 2 - jpg

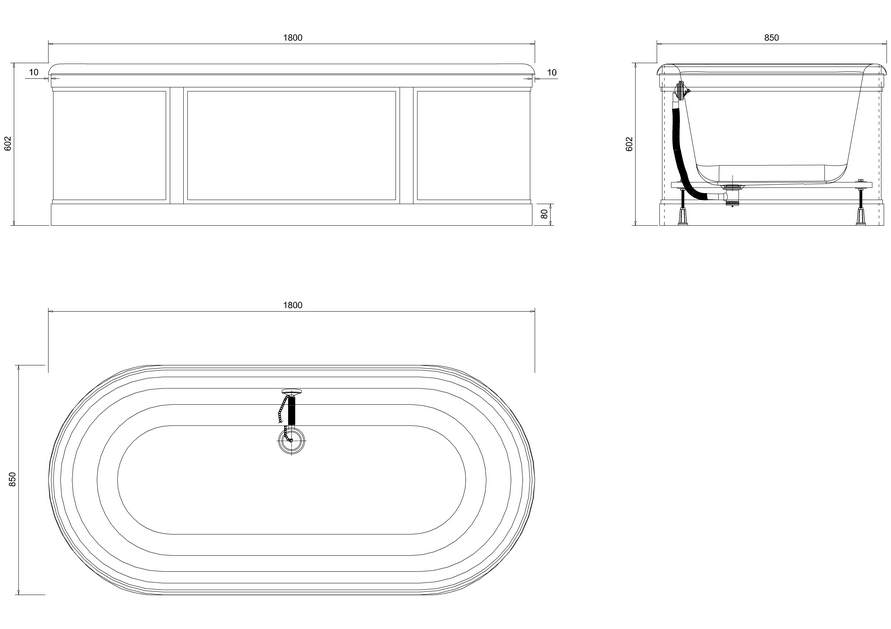

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
