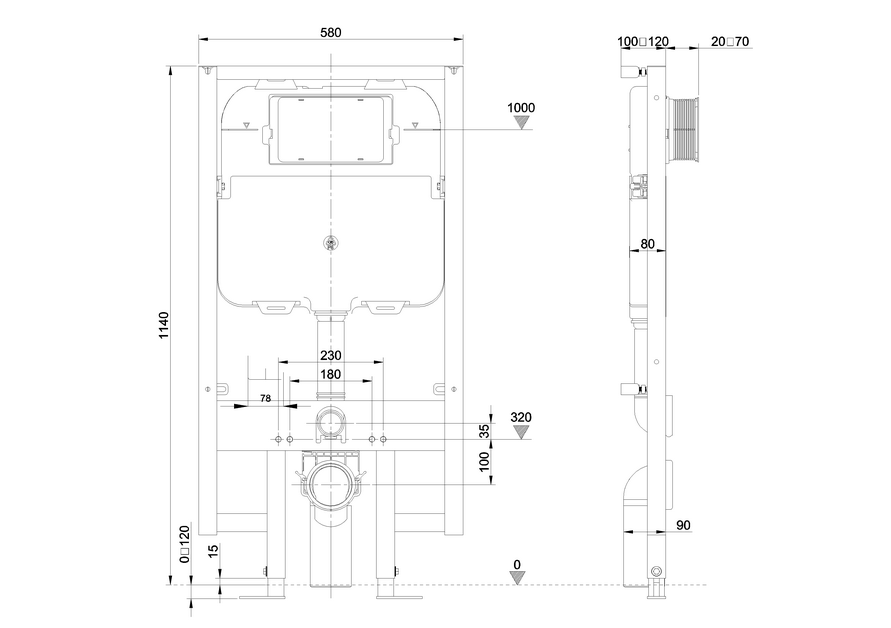

1.18m Height ULTRA SLIM Wall Hung WC Support Frame

As Shown

WCF118X50-VS −

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Weight Tested: Epoxy power coated steel frame - tested to take up to 400Kgs weight

Features: Reduced depth of 90mm - ideal for bathrooms where space is limited or you want to incorporate a tiled surround

Large feet for easy rear fixing (specially designed for UK timber floor)

Supplied complete with all fittings for installation

Adjustable feet with rubber sound deadening pads

UK sized inlet and outlet pipe work

Easy install wall brackets for vertical or horizontal fixing

0-20cm height adjustment

Solid brass 1/2" BSP top inlet valve

K9638-ESH1	bracket used on WCF118X50-VS in pair
K9042-ESH1	discharge bend part 31 on WCF118X50-VS
K4030-G-ESH1	dual Flush Siphon WCF118X50-VS+
K9659-ESH1	int. Seal WCF118x50+, WCF118X50-VS+ siphon(10pcs, pack)
K9503-ESH3	seal ring for K210A
B9432-ECL2	service Kit WCF118X50+ WCF118X50-VS
K9593-ESH1	straight pipe in PVC D110X300
