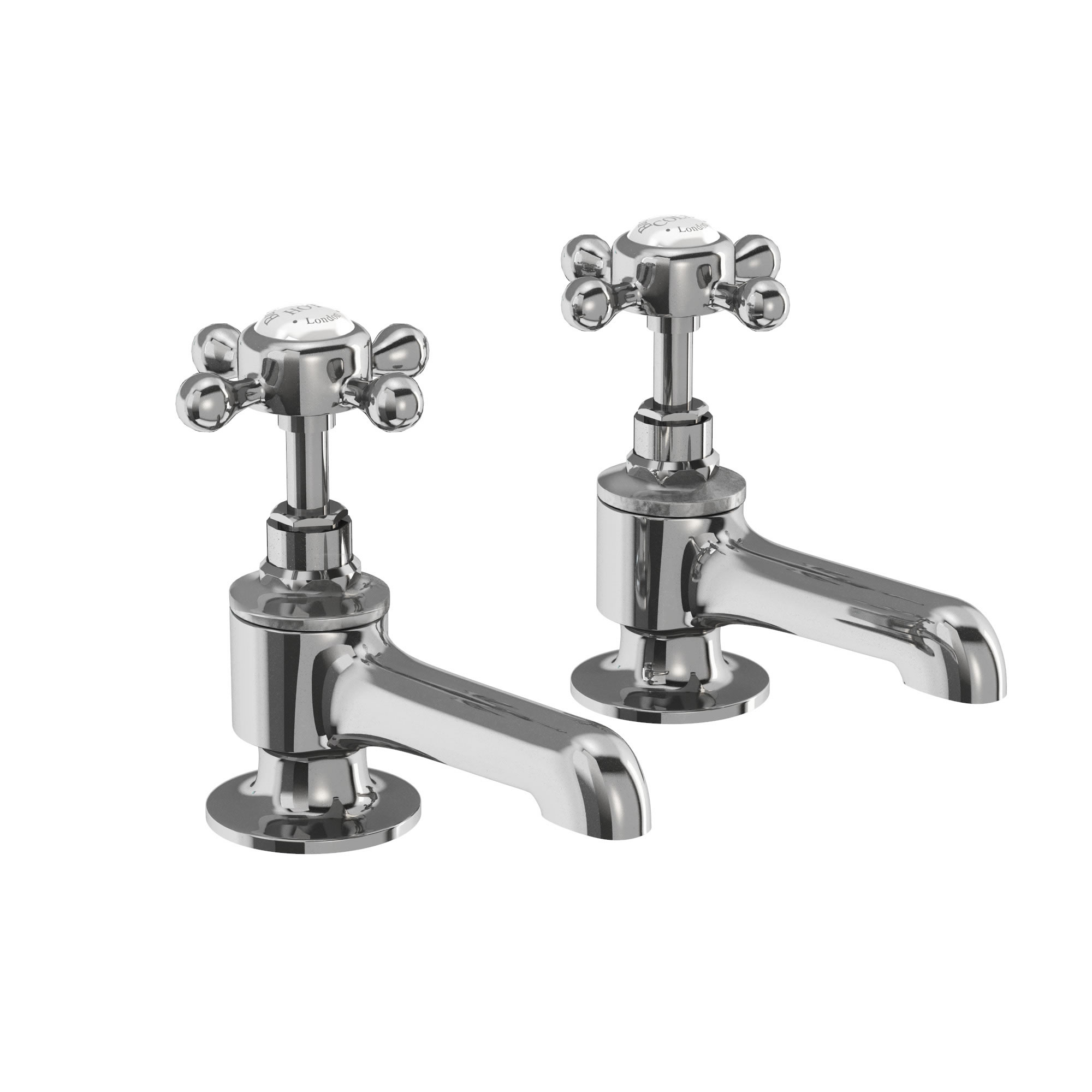

Stafford Bath Pillar taps
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|
As Shown
| STA13-QT − |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
No flow strengthener or aerator are included. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout | n/a | 35 | 44 | 56 | 62 | n/a | n/a |
| SP70 | 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP69 | 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
Downloads
-
2D CAD-File - DWG -
STA13-QT
(STA13-QT.dwg)
-

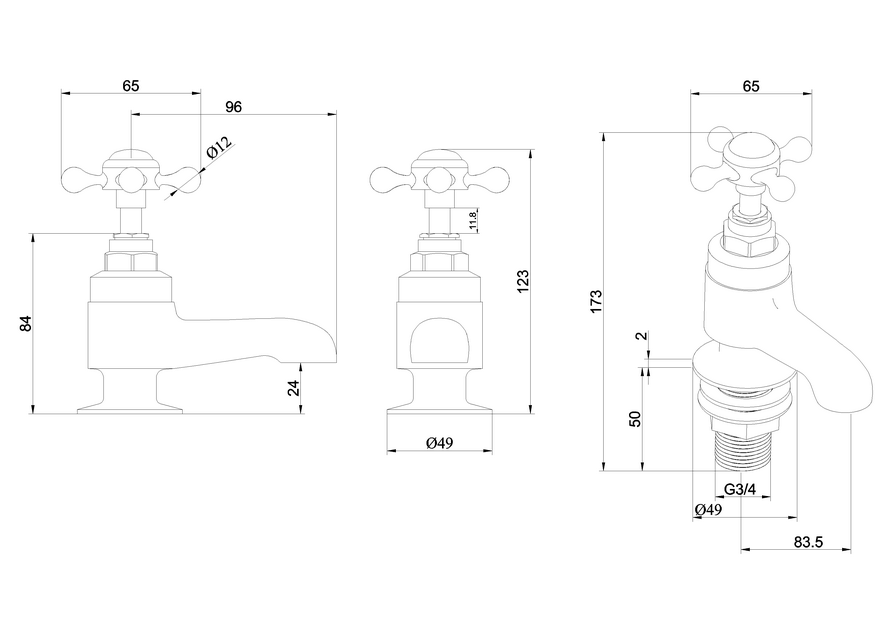

2D Drawing - PDF -
STA13-QT
(STA13-QT.pdf)
2D Drawing - PDF - STA13-QT
-
3D DWG - File - DWG
-
STA13-QT
(ST13 2013 05 03_1.dwg)
-
3D DXF - File - DXF
-
STA13-QT
(ST13 2013 05 03_1.dxf)
-
3D IGS - File - IGS
-
STA13-QT
(ST13 2013 05 03_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
STA13-QT
(STA13.rfa)
