Exposed bath overflow, click-clack waste
As Shown
| CW6 − |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to EN248:2002 |
| SP1115 | black O-ring for CW1, CW2, CW6, CW11 |
| SP1222 | black washer for CW6 and CW7 |
| SP481 | click clack part for CW8, CW6 and CW7 |
| SP1002 | connecting curved pipe of product W4, CW6, ARCW4 CHR (including the nuts & washers) |
| SP1682 | fixing screw of overflow base for CW6, CW11 |
| SP1897 | horizontal pipe for W4, CW6 |
| SP1168 | nut for W4, CW6, ARCW4 CHR |
| SP415 | o ring washer for waste plug of CW7 and CW6 |
| SP1478 | overflow base for CW6, CW11 |
| SP879 | overflow cover of product CW6 with Burlington logo |
| SP1251 | overflow cover of product CW6 without logo |
| SP658 | overflow cover of product CW6, CW7, CW11 |
| SP1683 | overflow housing for W4, CW6, CW11 |
| SP1171 | vertical tube for W4, CW6, ARCW4 CHR |
| SP1693 | waste base for CW6 |
| SP659 | waste cover for CW6, CW7 |
| SP1112 | waste housing for CW6 |
Downloads
-
2D CAD-File - DWG -
CW6
(CW6_LD.dwg)
-

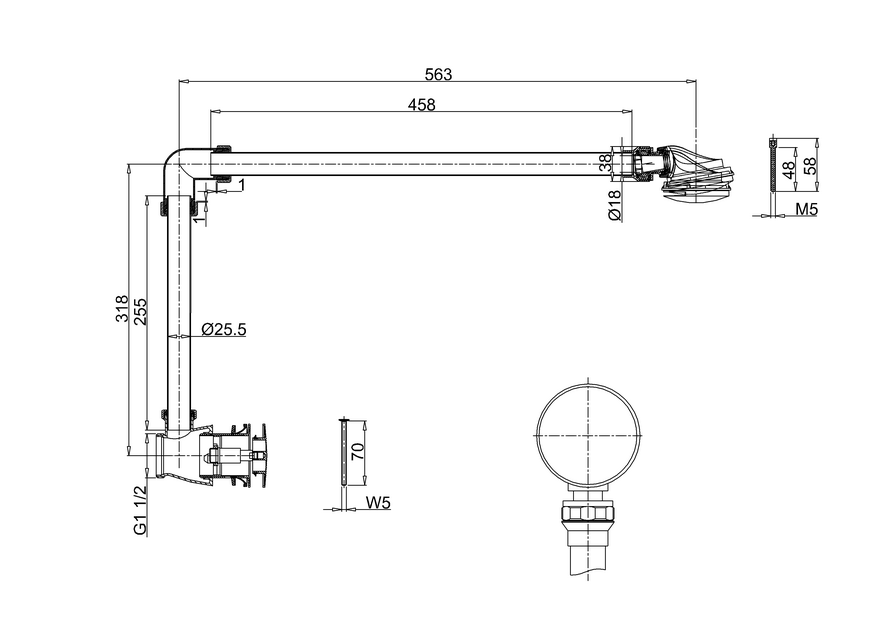

2D Drawing - PDF -
CW6
(CW6_LD.pdf)
2D Drawing - PDF - CW6
-
3D RFA BIMM Objects - File - RFA
-
CW6
(CW6CW7.rfa)
-
3D DWG - File - DWG
-
CW6
(CW6CW7.dwg)
-
3D DXF - File - DXF
-
CW6
(CW6CW7.dxf)
-
3D IGS - File - IGS
-
CW6
(CW6CW7.igs)
