Click-clack waste including overflow

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

CW8 −

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

Chrome plated to EN248:2002

SP1494	clamp part for CW8 overflow head
SP481	click clack part for CW8, CW6 and CW7
SP636	overflow cover for CW8
SP914	pop-up cover of bath waste for product CW8
SP969	rubber washer of bath waste for product CW8, CW11, CW1, CW2
SP1094	the overflow housing for CW8
SP1905C	waste base in chrome finish for CW8

Downloads

Instructions - PDF - CW8 (English)
Instructions - PDF - (French)

2D CAD-File - DWG - CW8 (CW8_LD.dwg)

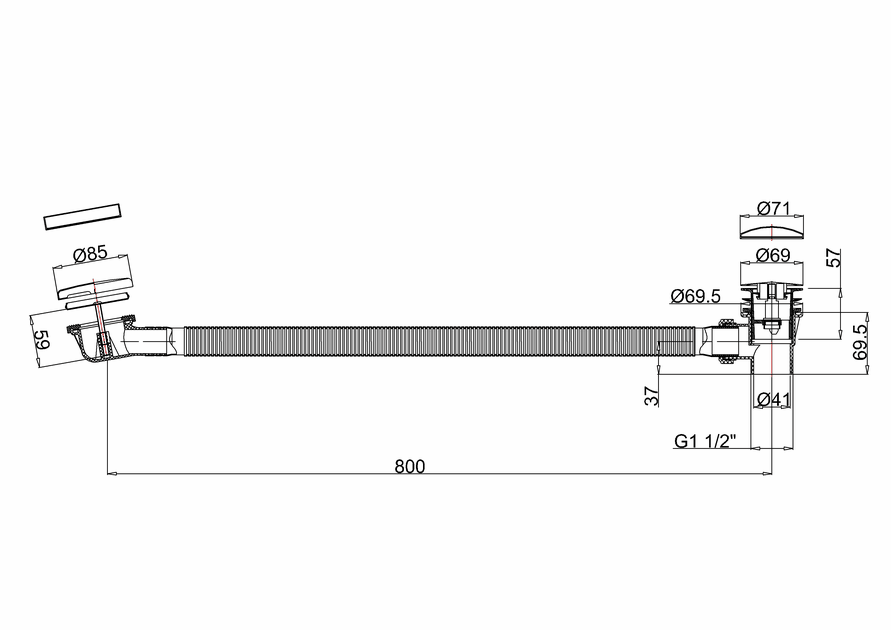

2D Drawing - PDF - CW8 (CW8_LD.pdf) 2D Drawing - PDF - CW8

3D DWG - File - DWG - CW8 (CW8.dwg)
3D DXF - File - DXF - CW8 (CW8.dxf)
3D IGS - File - IGS - CW8 (CW8.igs)
3D RFA BIMM Objects - File - RFA - CW8 (CW8.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
