Classic Basin Invisible Overflow & Waste
Product Options
Indicies & lever finish
|
White
|
Medici
|
As Shown
| W9 − |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
Additional Information
|
Can only be used with basins B14 & B16 |
|
The invisible overflow drains the water when the water level reaches the top of the basin. |

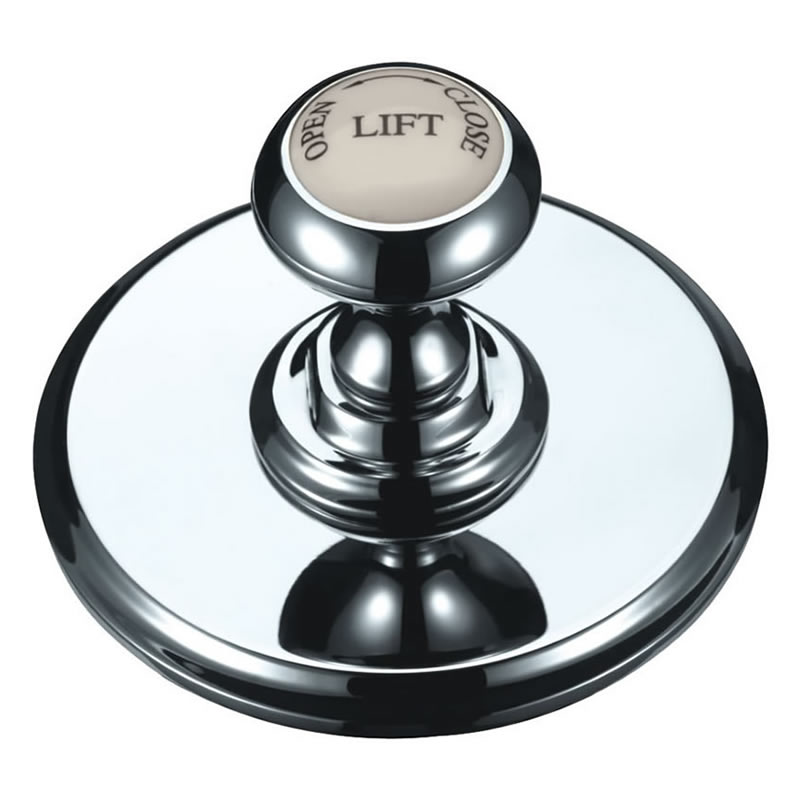

| SP433 | ceramic OPEN-CLOSE-LIFT knob for W9 |
| SP1155 | complete packaging for W9 |
| SP1665 | rubber washer (outer) adjacent fixing nut for W9 |
| SP919 | silicone gasket of product W9 |
| SP442 | waste cover for W9 |
Downloads
-
2D CAD-File - DWG -
W9
(W9_LD.dwg)
-

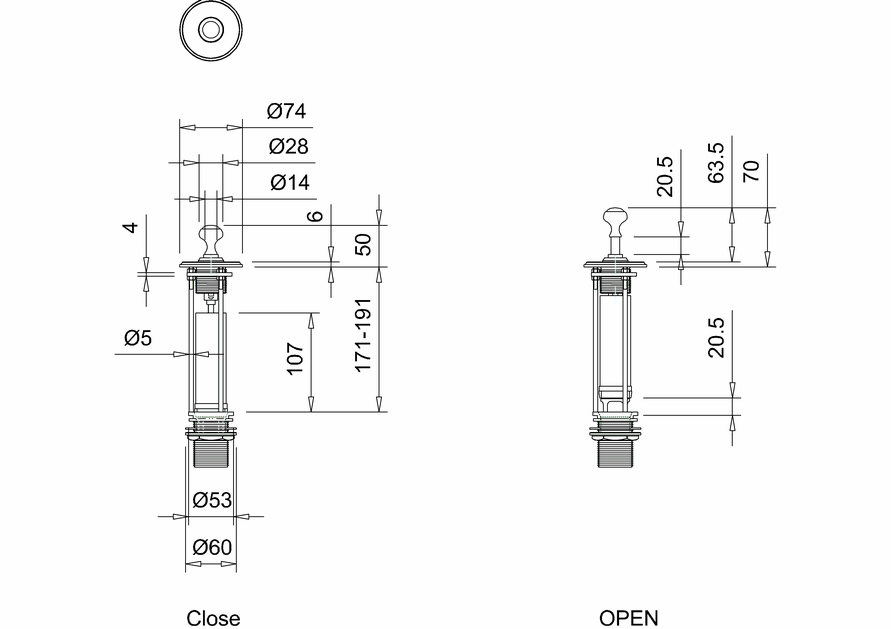

2D Drawing - PDF -
W9
(W9_LD.pdf)
2D Drawing - PDF - W9
-
3D DWG - File - DWG
-
W9
(W9.dwg)
-
3D DXF - File - DXF
-
W9
(W9.dxf)
-
3D IGS - File - IGS
-
W9
(W9.igs)
-
3D RFA BIMM Objects - File - RFA
-
W9
(W9.rfa)
